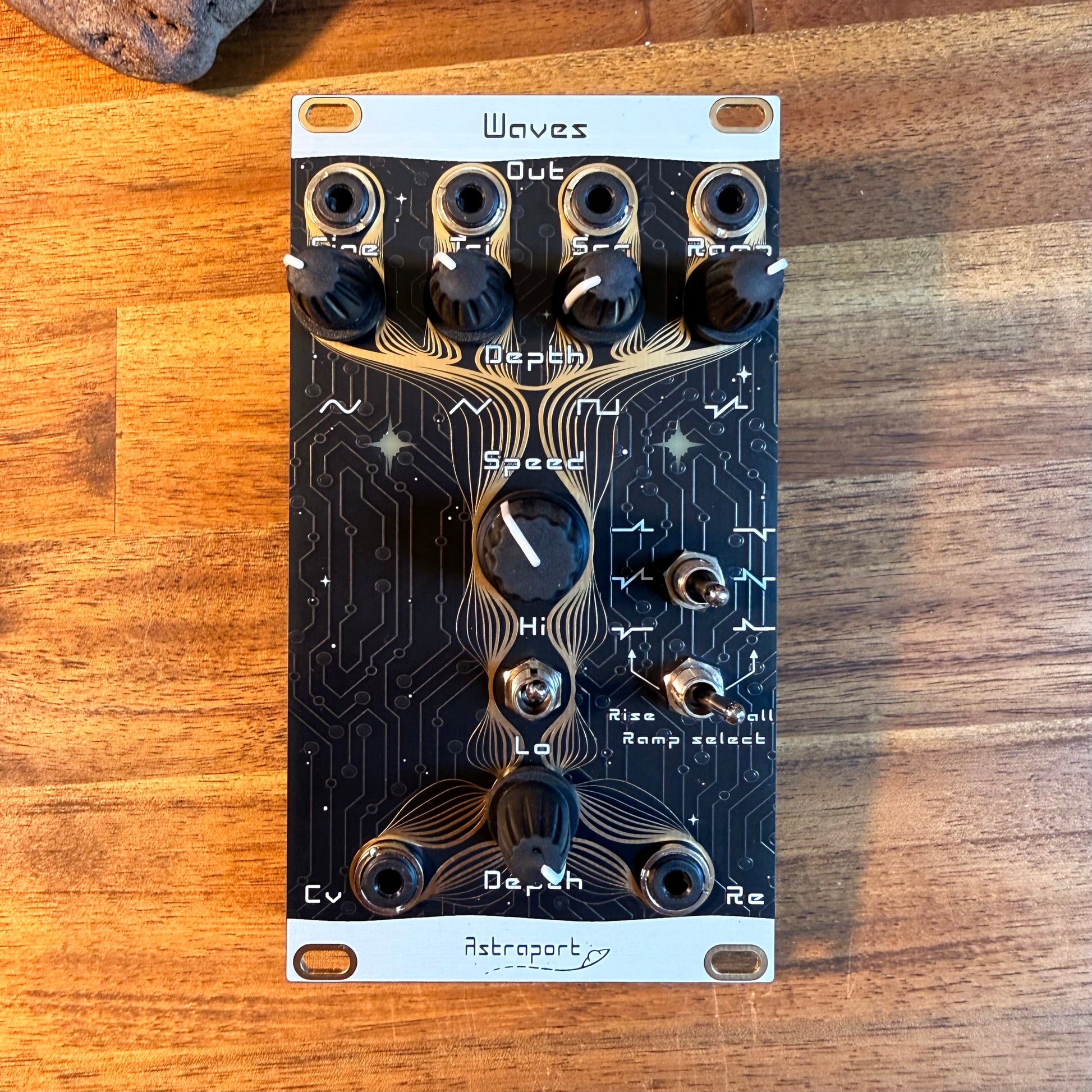

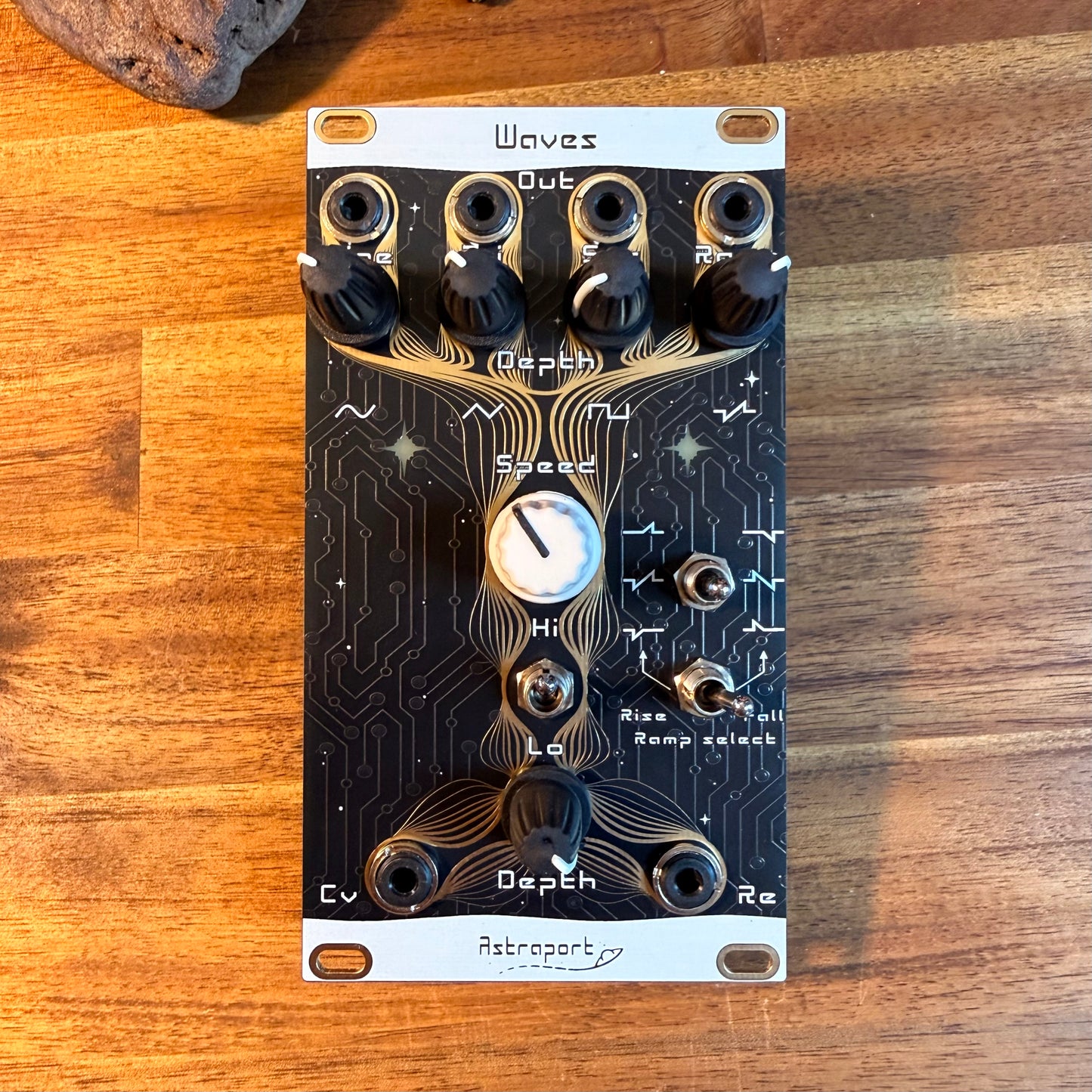

Waves

A powerful single analog LFO offering multiple simultaneous wave shapes each with their own out and each out has its own depth control.

The ramp stage is power, it has two switches, 1 to select the ramp shape and the other to invert the shape

Waves has speed control, hi-lo switch, Cv in with depth control, reset in and 2 LED's to visually monitor the speed

Features

· Multiple LFO outs: Sine, Tri, Sqr and Ramp
· Fully analog
· Ramp wave shape select
· Ramp wave inversion select
· Depth control pots for each out
· Speed control pot
· Hi-Low switch
· Cv in
· Reset In
· CV Depth control
  Note: Full voltage range on all outs

· Graphics: Black, white and real gold

· Dimensions: 70mm Wide / 25mm Deep

· 14Hp

· Module weight: 160g

· Power consumption
38mA +12v
35mA -12v
0mA 5v
