∆ - Eurorack Ruler

A quick handy tool to check your modules or when designing your next rig or for those building modules.

14hp and can be mounted in your rack

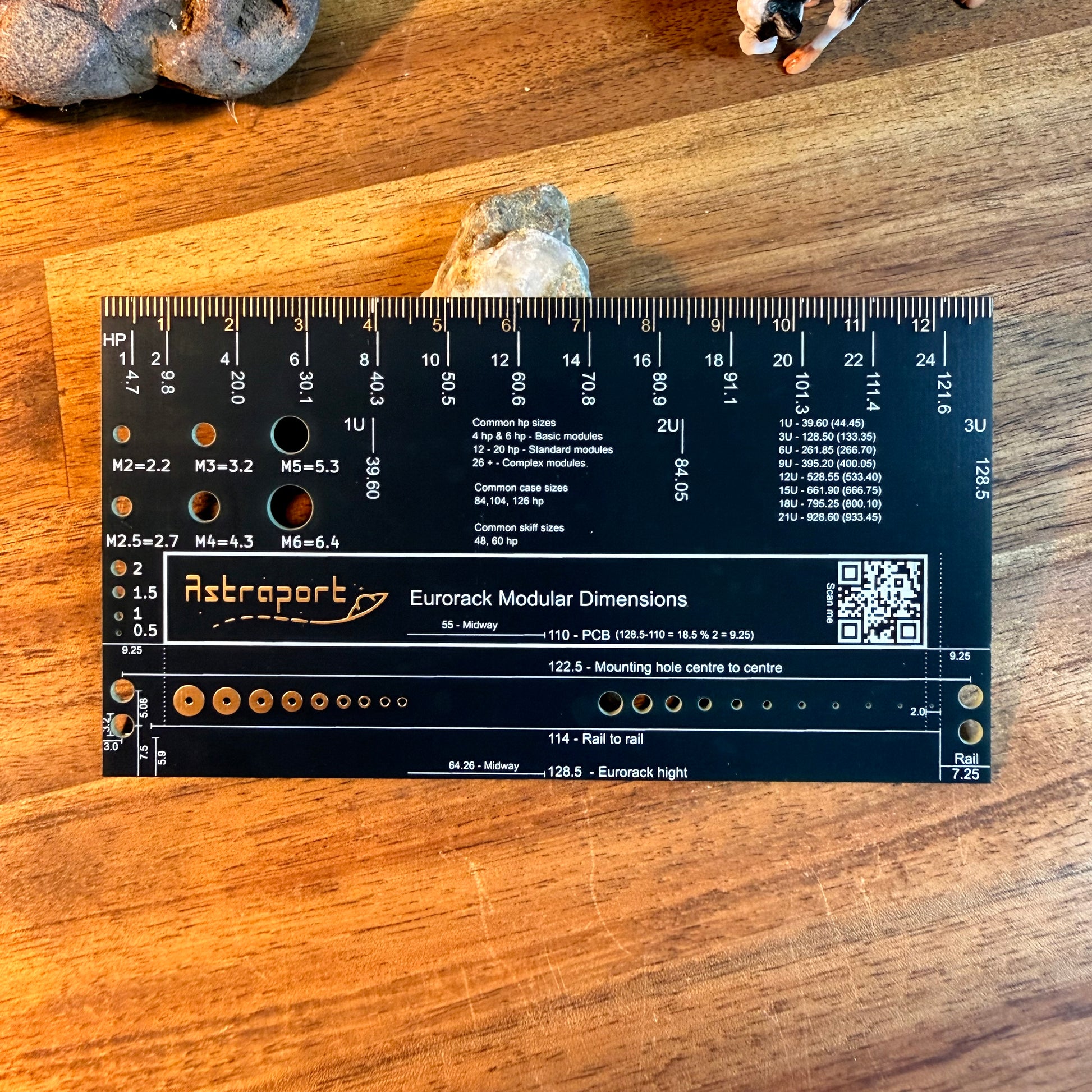

Features

· mm ruler
· Hp ruler measure up to 24hp
· U ruler measure up to 3U
· U measurements up to 21U
· Eurorack module high with midpoint
· Eurorack PCB hight with midpoint
· Mounting hole spacing and distance from each other in all directions
· Rail to rail and edge to rail
· Common Hp sizes
· Common Case sizes
· Common Skiff sizes
· M2.5 to M6 holes
· Holes from 0.5mm to 6.4mm
· Trace or line thickness from 0.1mm to 6.5mm on edge of board for measuring
· Text size 0.5mm to 4.00mm
· Text thickness 0.1mm to 0.5mm
· AWG wire sizing holes 28AWG to 8AWG
· AWG wire sizing holes in corresponding mm 0.32mm to 3.26mm
· Corner fillet 1mm to 5mm
· Copper pad around holes size 0.125mm to 1.75mm

· All measurements in mm's

· Graphics: Black, white and real gold

· Dimensions: 70mm Wide

· 14Hp

· Module weight: 27g

· Power consumption
Does not require power
